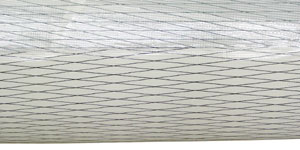

Code Zero Inlaid Mylar Sail
- 'State of the art' cloth exclusively designed by Dimension Polyant Australia.
- Semi-transparent smoke coloured mainsail inlaid design
- PX20 on the leading edge for durability
- PX10 on the trailing edge for handling
- Reduced weight by 700 grams over the PX sail.
- Increased handling and performance
|
|
PX Inlaid Mylar Sail
- PX cloth with internal taffeta
- Durable and long lasting
- Inlaid design
- Lightweight PX5 mainsail
- PX20 on the leading edge for durability
- PX10 on the trailing edge for handling
- Sail surface finished with Titanium Oxide to reduce UV effects
|
|
Zoom Uprights with Carbon Fibre Performance Speed Bar
|
|
Carbon Fibre Outer Leading Edge
- Lighter than aluminium by approximately 700 grams
- Decreasing wing tip inertia, thus improving the maneuverability of the glider
- Same stiffness with improved overall strength
- Because this weight reduction takes place at the tip of the glider, this option has the most significant reduction in roll inertia of any further change to the glider configuration
|
|
Carbon Fibre Dive Struts
- Weight saving over aluminium by approximately 360 grams
- Unique design with a spoon bill tip and tapered to the trailing edge
- Added wall thickness for strength where needed
- Refined designed to achieve the lightest and strongest product possible
- As with the outboard leading edges this weight reduction is biased toward the wing tip, thereby having an enhanced effect in the effort to reduce roll inertia
|
|
Carbon Batten Set
- 5 Mainsail battens
- 2 Undersurface battens
- Improved stiffness with carbon aids pitch stability
- Provides improved pitch stability
|
|
Carbon Fibre Inner Leading Edge
- Further reduces the overall weight of the glider, by approximately 900 grams.
- Reduced glider weight translates into improved maneuverability.
|
|

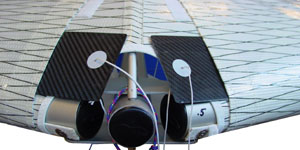

Carbon Fibre Leading Edge Inserts
- Lightweight yet strong
- Improved pitch and yaw stability
- Innovatively incorporates a thin balsa insert for added stiffness
- Helps maintain an aerodynamic profile between the ribs providing a clean, smooth leading edge surface, especially at high speeds
|
|
Carbon Fibre Keel
- Slimline design, low drag carbon fibre keel designed by Gerolf Heinrichs and Theo Klafsky.
- Pre-impregnated carbon keel consists of a recessed, female pressure formed, keel mid section with modified 'Bailey Block' and a mid section cover to enclose the pull back cables
- The rear keel incorporates a replaceable plastic 'wear resistant' foot
|
|
Zoom Upright with FAST Aerodynamic Aluminium Speed Bar
- Zoom Uprights:
- Extremely low drag aerodynamic profile
- Extruded 6061 aluminium
- Anodised matt black finish
- Fast Speed Bar:
- Low drag aerodynamic profile
- Aluminium and anodised in a matt black finish to match the Zoom uprights
|
|
Zoom Upright with Round Speed Bar
- Zoom Uprights:
- Extremely low drag aerodynamic profile
- extruded 6061 aluminium
- anodised matt black finish
- Round Speed bar:
- Round 6061 drawn aluminium tube
- anodised bright dip finish
- non slip rubber hand grips
|
|
Aerofoil Upright with FAST Aerodynamic Aluminium Speed Bar
- Aerofoil Uprights:
- low drag aerodynamic profile 60 mm
- anodised bright dip finish
- Fast Speed Bar:
- low drag aerodynamic profile
- extruded aluminium
- anodised bright dip finish to match the aerofoil uprights
|
|
Aerofoil Uprights with Round Speed Bar
- Aerofoil Uprights:
- low drag aerodynamic profile 60 mm
- anodised bright dip finish
- Round Speed bar:
- Round 6061 drawn aluminium tube
- anodised bright dip finish
- non slip rubber hand grips
|
